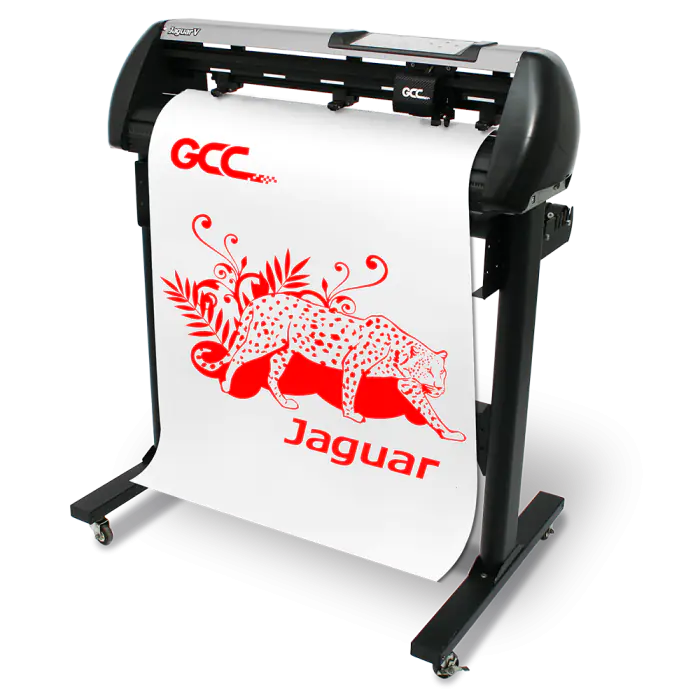

With intuitive features to meet the demands of today's professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
Dimensions:
depended on cut width (see specs)
AAS:
No
Max Cut Width:
610 , 1320 mm
Max Cut Force:
600 g
Max Cut Speed:
1530 mm/sec (60 ips) (at 45° direction)
Acceptable Material Thickness:
0.8 mm
Overview
The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101, J5-160 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX, J5-160LX and J5-183LX) .
With intuitive features to meet the demands of today’s professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
Key Features
- Enhanced AAS II Contour Cutting System
- Section Cutting
- Auto Rotation
- Segmental Positioning
- Triple Port Connectivity
- Efficient Throughput
- Guaranteed 10m Tracking Ability
- Innovative Tangential Mode
- Media Support System
- User-Friendly Control Panel
- Selective Pinch Roller Positioning
- Facilitate Efficient Workflow of Car Wrapping
- GCC One-Click Windows Driver
Enhanced AAS II Contour Cutting System
The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:
 |  |  |  |
| 1st-mark auto-detection | 4-point positioning | Segmental positioning | Multiple copies |
Section Cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Auto Rotation
New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Segmental Positioning
Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Triple Port Connectivity
Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Efficient Throughput
At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.
Guaranteed 10m Tracking Ability
The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.
Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.
Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.
User-Friendly Control Panel
The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.
Selective Pinch Roller Positioning
Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.
Facilitate Efficient Workflow of Car Wrapping
The dedicated GCC Jaguar V (PPF) is the most cost-effective and high-performance vinyl cutter for streamlined vehicle wrap workflow. With the support of third-party cutting software containing the window tint and PPF pattern library, GCC Jaguar V (PPF) can accurately cut the vehicle patterns you require, making the wrapping process quicker and easier.
GCC One-Click Windows Driver
GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
| Jaguar V Series | J5-61 | J5-132 |
| Operational Method | Roller-Type | |
| Max. Cutting Width | 610 mm (24 in.) | 1320mm (52 in.) |
| Max. Media Loading Width | 770mm (30.3 in.) | 1594mm (62.7 in.) |
| Min. Media Loading Width | 50 mm (1.97 in.) | |
| Number of Pinch Rollers | 3 | 4 |
| Acceptable Material Thickness | 0.8 mm (0.03 in.) | |
| Driver | DC Servo Control | |
| Max. Cutting Force | 600g | |
| Max. Cutting Speed | 1530 mm/sec (60 ips) (at 45° direction) | |
| Acceleration | 4.2 G (gravity) | |
| Offset | 0~1.0 mm (with an increase of 0.025mm) | |
| Memory Buffer | 32 MB /16 MB (when using AAS) | |
| Interfaces | USB 2.0 (Full Speed) and Serial (RS-232), and Ethernet | |
| Type of Command | HP-GL, HP-GL/2 | |
| Mechanical Resolution | 0.006 mm | |
| Software Resolution | 0.025 mm | |
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | |
| Repeatability | ±0.1 mm | |
| Automatic-Aligning System | Only available on Jaguar V LX models, including Segmental Positioning and Auto Rotation functions | |
| Auto Rotation | Only available on Jaguar V LX models | |
| Section Cutting | Yes | |
| Curve & Arc Smoothing | Yes | |
| Configurable Origin | Yes | |
| Test Cut Capability | Yes | |
| Tangential Mode | Yes | |
| Over Cut | Yes | |
| Repeat | Yes | |
| Copy | Yes | |
| Control Panel | LCD (20 digits x 2 lines), 14 Keys, 1 Power LED | |
| Diameter of Blade | 2.5 mm | |
| Stand | Optional | Standard |
| Media Basket | Optional | |
| Power Supply | 100~240 VAC 50 / 60 Hz (auto switching) | |
| Power Consumption | Max. 250 W | |
| Dimension (H x W x D) mm | 412 * 950 * 486 | 1111 * 1774 * 65 |
| Dimension (H x W x D) inches | 16.2 * 37.4 * 19.1 | 43.7 * 69.8 * 25.6 |
| Net Weight | 18 kg/ 39.6 lb | 50 kg/ 110.2 lb |
| Operation Environment Temperature | 15° C~30° C / 60°F~86° F | |
| Operation Environment Humidity | 25% ~ 75% | |
- Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC reserves the right to change the specifications at any time without notice.
- GCC certified material in tracking is Avery MPI 3000.
- The above listed specification values are effective only when operated with media certified by GCC.
Add-on Flat Table (only for 61 model)
Adjusting the blade length to fit your needs.
Roll to Roll System
The roll-to-roll system enables users to effortlessly handle continuous roll media, eliminating the need for manual intervention and maximizing workflow efficiency. This feature enhances convenience and versatility, particularly for car restyling, PPF, window tint, and signage (print & cut) applications.
18" x 24" Low Adhesive Film (3 pcs/pk)
Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.
Blade Holder Φ2.5 mm
Adjusting the blade length to fit your needs.
Stand
To support cutting plotter machine and roll media.
Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
It prevents the blades from becoming blunt quickly.
