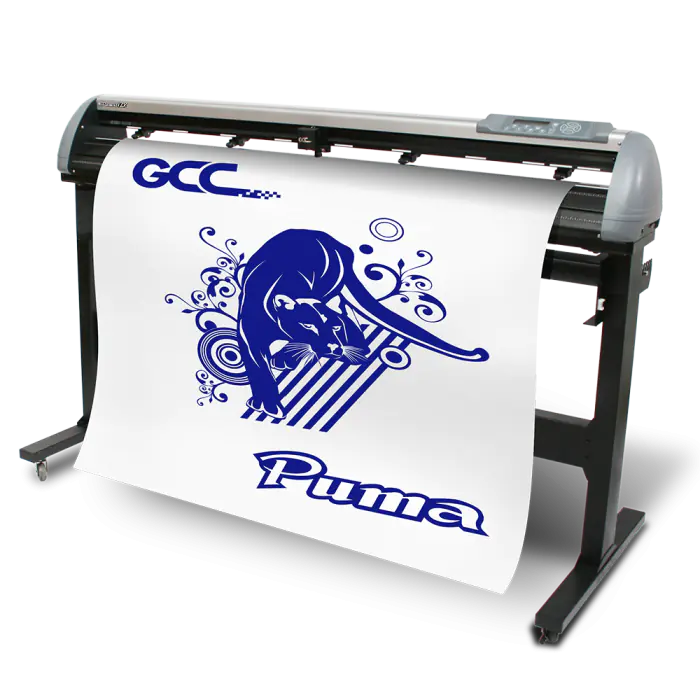

The new Puma IV enhances its capability to complete a variety of applications with great efficiency which satisfies your different needs in sign industry.
Dimensions:
220 x 879 x 258 mm / 1065 x 1632 x 620 mm
AAS:
Yes (LX)
Max Cut Width:
600 mm / 1300 mm
Max Cut Force:
500 g
Max Cut Speed:
1,020 mm/s(40.2 ips) (at 45° direction)
Acceptable Material Thickness:
0.8 mm
Overview
The new Puma IV enhances its capability to complete a variety of applications with great efficiency which satisfies your different needs in sign industry.
Powered by a digitally controlled servo system, the Puma IV produces eye-catching graphics with up to 40 ips (1020 mm/sec) cutting speed, 500 g of cutting force and 5 meters (16.4 feet) of tracking ability.
Key Features
- Enhanced AAS II Contour Cutting System (Only for Puma IV LX Model)
- Triple Port Connectivity
- Section Cutting
- Auto Rotation (Puma IV LX Model Only)
- Segmental Positioning (Puma IV LX model only)
- Tracking Ability
- Versatility
- Accurate and Smooth Operation
- Handy Grooved Cut-Off Tool
- Windows Drivers
- Friendly Operation
Enhanced AAS II Contour Cutting System (Only for Puma IV LX Model)

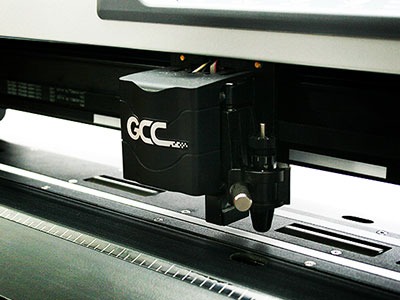

The Puma IV series features a standard Automatic-Aligning System(AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:
 |  |  |  |
| 1st-mark auto-detection | 4-point positioning | Segmental positioning | Multiple copies |
Triple Port Connectivity

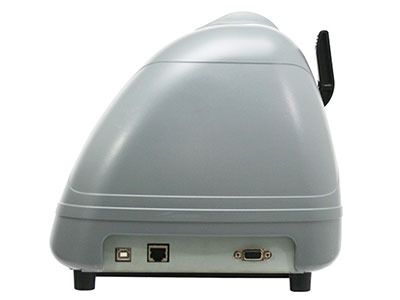

Puma IV series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Puma IV. Ethernet connection enables multiple Puma IV to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides users a great flexibility for data transmission.
Section Cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Puma IV series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Auto Rotation (Puma IV LX Model Only)
New registration marks defined to detect material feeding direction. Puma IV detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Segmental Positioning (Puma IV LX model only)
Puma IV series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Tracking Ability
The exclusive grid drum is precisely engineered to provide superb tracking ability.
Versatility

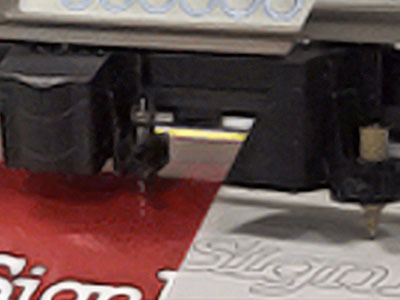

Puma IV is a versatile machine with the ability to plot and cut without having to alter the plotter's mechanical configuration. For vector cutting, simply install a blade holder; for plotting, simply install the drawing pen or a ballpoint pen.
Accurate and Smooth Operation

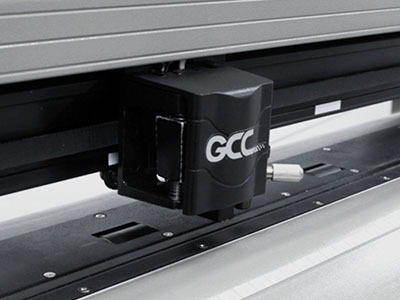

Puma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation.
Handy Grooved Cut-Off Tool
Windows Drivers

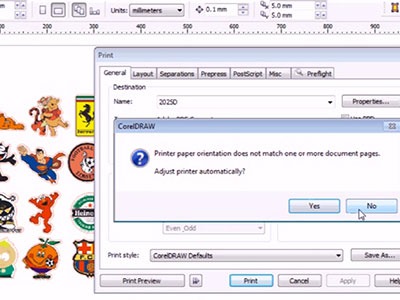

Puma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV.
Friendly Operation

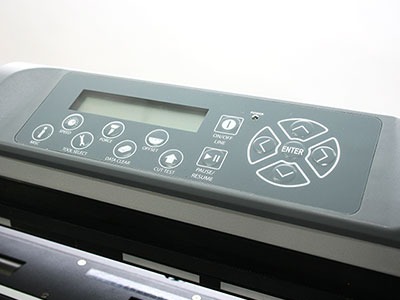

The user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed and cutting force. Buttons on the Puma IV include frequently used functions such as speed, force, offset and cut test. 4 sets of prestored job settings for frequently used material can be stored in Puma IV. These settings include cutting speed, blade offset, cutting force, as well as movement speed during tool-up and cutting.
| Puma IV | P4-60/P4-60LX | P4-132/P4-132LX |
| Operational Method | Roller-Type | |
| Max. Cutting Width | 600mm(23.6 in.) | 1300 mm(51.18 in.) |
| Max. Media Loading Width | 719 mm(28.3 in.) | 1470 mm(57.87 in.) |
| Min. Media Loading Width | 50 mm(1.97 in.) | |
| Acceptable Material Thickness | 0.8 mm (0.03 in.) | |
| Number of Pinch Rollers | 2 | 4 |
| Drive | DC Servo Control | |
| Max. Cutting Force | 500g | |
| Max. Cutting Speed(Diagonal) | 1,020 mm/s(40.2 ips) (at 45° direction) | |
| Offset | 0-1.0 mm (with an increase of 0.025 mm) | |
| Mechanical Resolution | 0.009 mm (0.00035") | |
| Software Resolution | 0.025 mm (0.00098") | |
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | |
| Repeatability | ±0.1mm | |
| Memory Size | 32 MB /16 MB (when using AAS) | |
| Interfaces | USB 2.0 (High speed), Serial (RS-232C), Ethernet | |
| Commands | HP-GL, HP-GL/2 | |
| Automatic-Aligning System | Available on Puma IV LX models, including Segmental Positioning and Auto Rotation functions | |
| Configurable Origin | Yes | |
| Curve & Arc Smoothing | Yes | |
| Test Cut Capability | Yes | |
| Repeat Function | Yes | |
| Copy Function | Yes | |
| Tangential Mode | Yes | |
| Overcut Capability | Yes | |
| Pause and Move | Yes | |
| Control Panel | LCM (20 digits X 2 lines), 14 Keys , 1 power LED | |
| Diameter of Blade | 2.5 mm | |
| Dimension(H x W x D) mm | 220 x 879 x 258 mm 8.76 x 34.61 x 10.16 in. | 1065 x 1632 x 620 mm (Stand Including ) 41.93 x 64.25 x 24.41 in. |
| Net Weight | 13 kg / 28.6 lb | 53 kg / 116.4 lb |
| Power Supply | AC 100-240V, 50~60 Hz (auto switching) | |
| Power Consumption | Max. 170 W | |
| Environment Humidity | 25%~ 75% relative humidity (operating) | |
| Environment Temperature | 15°-30°C (60°-86°F) | |
- Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC reserves the right to change the specifications at any time without notice.
- GCC certified material in tracking is Avery MPI 3000.
- The above listed specification values are effective only when operated with media certified by GCC.
Blade Holder Φ2.5 mm
Adjusting the blade length to fit your needs.

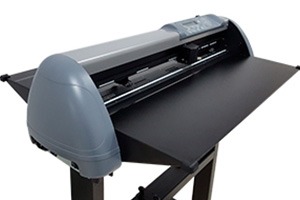

Add-on Flat Table (only for 60 model)
For cutting thick sheet material, such as magnet.
Stand

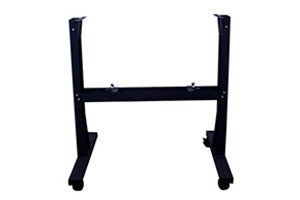

The optional stand allow users to manage the roll media and create more space in your work area with the easily installed stand.
