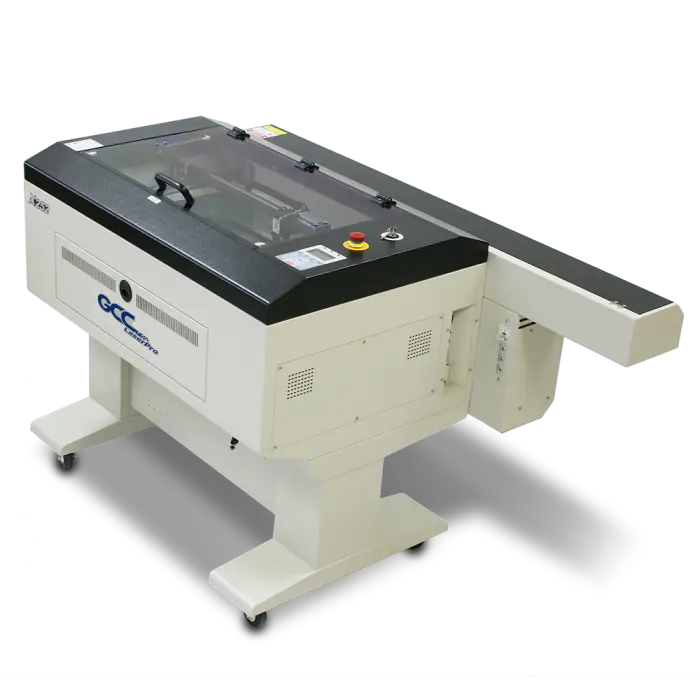

80W & 100W Water Cooled CO2 laser tubes
The LaserPro X series offers an economical alternative for laser cutting and engraving.
Wattage:
80W~100W
Tube:
Glass Tube
Work Area:
635 x 458 mm
Z-Axis:
165 mm
Work Speed (max):
1.01 m/s
Cooling:
Water Cooled
Overview
The LaserPro X series offers an economical alternative for laser cutting and engraving.
The LaserPro X series is equipped with dependable sealed CO2 laser which offers a reliable source of 80W and 100W of power for mass production requirements.
Key Features
- Easy-to-use Control Panel
- Programmable Origin
- RoHS Compliance
- SmartBOX™ Cutting Accessory (Optional)
- Motion System with DC Servo Motor
- Pass-through Front to Rear Doors (Optional)
- AutoFocus (Patented)
- Emergency Stop

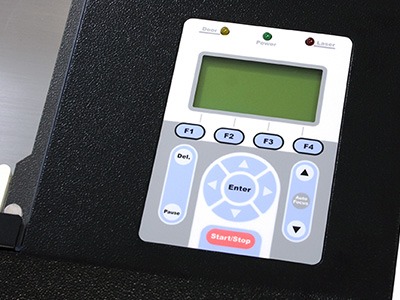

Easy-to-use Control Panel
A control panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue job, delete jobs, and more.
Programmable Origin
Designed for simplifying complex tasks, the LaserPro X252 user-friendly interface is a great facilitator to provide powerful function settings.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

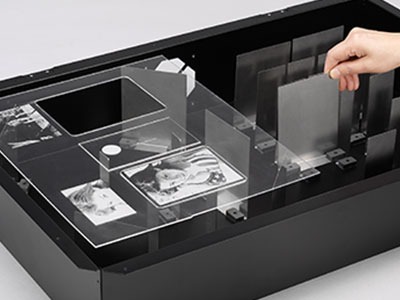

SmartBOX™ Cutting Accessory (Optional)
The innovative design is composed of a ventilation box, a honeycomb table and rearrangeable magnetic supporting pieces. The SmartBOXTM provides great cutting quality and remarkably enhance air extraction.
Motion System with DC Servo Motor
The LaserPro X252 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

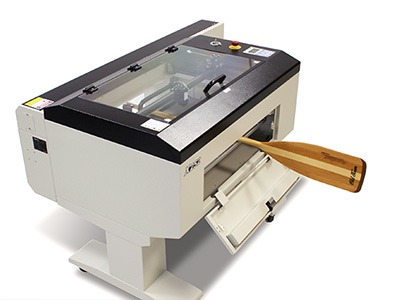

Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

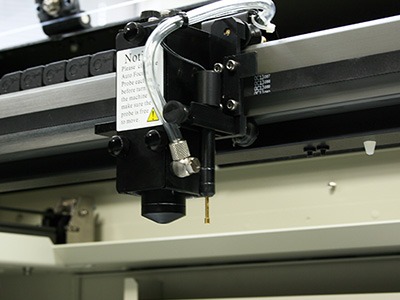

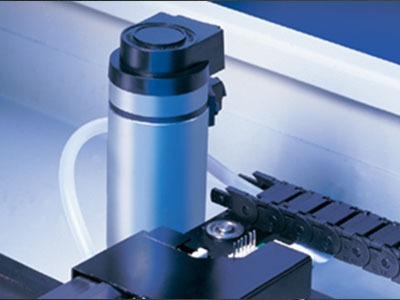

AutoFocus (Patented)
Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

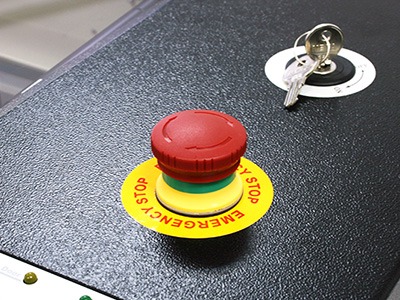

Emergency Stop
Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operational environment.
| X252 | ||
| Laser Source | 80W / 100W | |
| Sealed CO2 Laser | ||
| Laser Cooling | Water Cooled | |
| Working Area | 635 x 458 mm (25 in. x18 in.) | |
Max. Part Size (L x W x H) | All doors closed | 685 x 482 x 165 mm (27 x 19 x 6.5 in.) |
| All doors open | 685 x ∞ x 165 mm (27 x ∞ x 6.5 in.) | |
| Table Size | 790 x 530 mm (31.1 x 20.9 in.) | |
| Dimensions | 1650 x 930 x 1040 mm (64.9 x 36.6 x 40.9 in.) | |
| Driving Motor | Closed-loop DC servo control | |
| Maximum Motor Speed | 1.01 m/s (40 in/s) | |
| Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) | |
| Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) | |
| Engraving Capability | 256-level gray scale image processing capability | |
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater | |
| Resolution (DPI) | Available 125, 250, 500, 1000 | |
| Z-Axis Movement | Automatic | |
| Focus Lens | Standard 2.0", Optional 1.5", 3" | |
| Interface | 10 Base-T Ethernet USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0  – For connecting with the computer | |
| Compatible Operating Systems | MS Windows | |
| Safety | Class 1 Laser Product Compliant with EN60825 Class 2 Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module | |
| Facility Requirements | ||
| Operation Voltage | 200-240VAC, 50/60Hz Auto Switching, MAX. 8A. | |
| Water Chiller | External water chiller required | |
| Fume Extraction System | External exhaust system with minimum flow rate 640m³/h (CFM 377 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port) | |
* Speed is not equal throughput. See dealer or visit http://www.GCCworld.com for more details.
** The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
∆ Specifications are subject to change without prior notice.

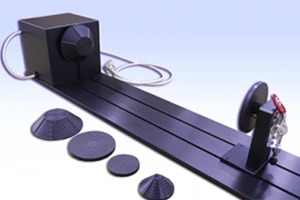

Rotary Attachment
Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 110 mm and 450 mm respectively. Its maximum weight should not exceed 4kgs.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration

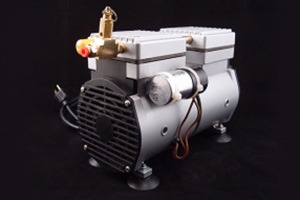

Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life.

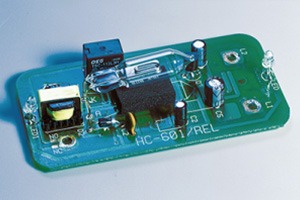

SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

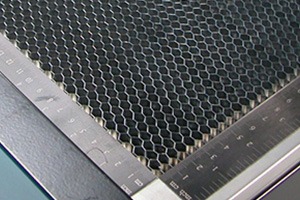

Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINT™
SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.

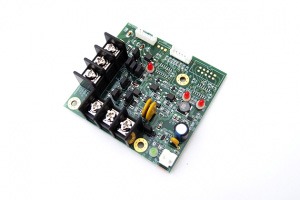

External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.

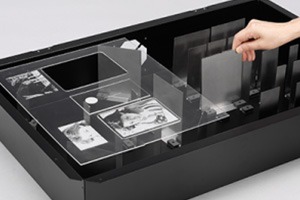

SmartBOX™
An innovative technology for laser engravers and cutters that integrates the ventilation box with a honeycomb table or aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.

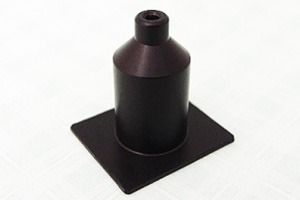

SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
SmartVISION™ Elite CCD
GCC LaserPro laser engraver utilizes the SmartVISION™ Elite CCD module, which enhances productivity by memorizing and locating printed graphics for precise, automatic contour cutting on materials like wood, acrylic, and cardstock. The working area will be changed to 550mm X 440mm (21.6”X 17.3”) after installing the CCD module .
Please note that the SmartVISION™ Elite CCD is exclusively compatible with CO2 models.
