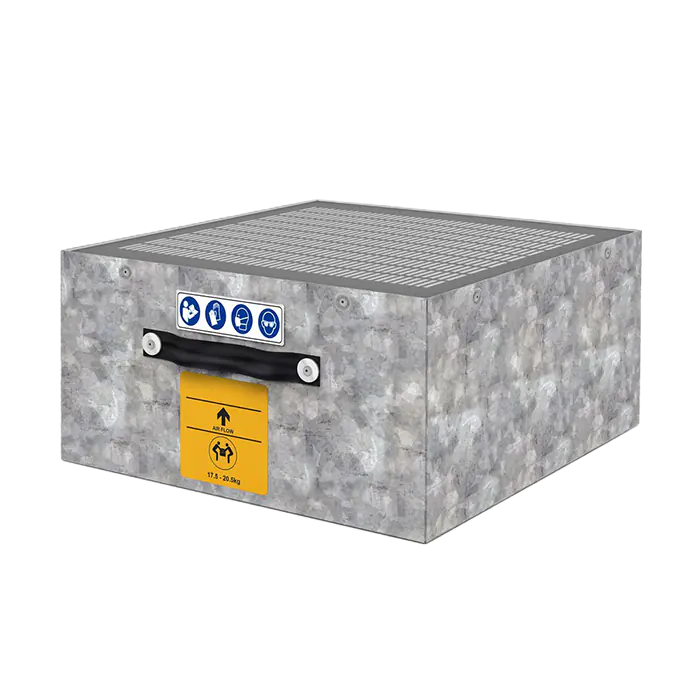

Genuine BOFA AD Oracle combined HEPA and gas filter, designed to provide high-efficiency filtration of fine particulate and gaseous contaminants from laser fumes.
Dimensions:
190H x 370W x 390D Approx.
Filter Type:
Combined Filter
Filter Media:
Pleated glass fibre material.
Filter Construction:
Zinc plated Steel case, sealed with Polyurethane sealant
Filter Efficiency:
99.997% removal of 0.3μm particles
Carbon Content:
Approximately 11 Kgs
Overview
The BOFA AD Oracle Combined Filter (1UA1030155) is a genuine replacement filter designed for BOFA AD Oracle and compatible Oracle-series laser fume extraction systems.
Combining pleated glass-fibre HEPA filtration with 15 kg of treated activated carbon, the filter provides effective removal of fine particulate and gaseous contaminants from extracted laser fumes. The HEPA stage is rated at 99.997% efficiency at 0.3 microns.
The filter features a maxi-pleat construction with glue bead spacers and is housed in a Zintec mild-steel casing, providing a robust replacement filter suitable for the demanding requirements of laser fume extraction.
Compatible with: BOFA AD Oracle, AD Oracle iQ, AD Base 1 Oracle and AD Base 2 Oracle, among other compatible systems.
Â
Key Features
- Genuine BOFA replacement filter
- Combined HEPA and gas filtration
- Pleated glass-fibre HEPA media
- 99.997% filtration efficiency @ 0.3 microns
- 15 kg treated activated carbon
- Maxi-pleat construction with glue bead spacers
- Zintec mild-steel filter housing
- Designed for BOFA AD Oracle and compatible Oracle-series extraction systems
| BOFA C180 Bag Filter | Â |
| Dimensions | 190H x 370W x 390D Approx. |
| Brand | BOFA |
| Product Type | Combined Filter |
| Part Number | 1UA1030155 |
| Filter Type | Bag Filter / Pre-Filter |
| Filter Media | Pleated glass fibre material. |
| Filter Media 2 | Impregnated Activated Carbon (if applicable) |
| Fabrication | Zinc plated Steel case, sealed with Polyurethane sealant |
| Connection | N/A |
| Filter Efficiency | 99.997% removal of 0.3μm particles |
| Carbon Weight | Approximately 11 Kgs |
