30W & 40W Air Cooled CO2 laser tube options.

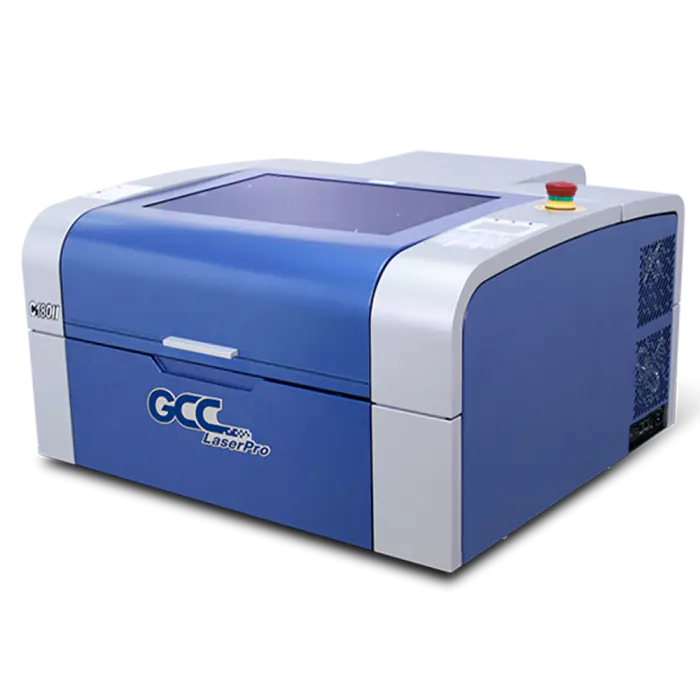

The C180II is a compact desktop engraver with smart vacuum adjustment, offering clean, accurate results for small spaces and home businesses.
Wattage:
12W~40W
Tube:
Metal Tube
Work Area:
458 x 305 mm
Z-Axis:
152.4 mm
Work Speed (max):
1.01 m/s
Cooling:
Air Cooled
Overview
The C180II desktop laser engraver is designed to provide an enjoyable laser engraving experience. Underneath the stylish exterior is a full 18” x 12” (458 x 305 mm) working area.
The C180II laser engraver is an all purpose desktop laser engraver that delivers spectacular engraving and cutting results and makes every job a pleasant working experience..
Key Features
- Closed-loop DC Servo Motor and Reliable Motion System
- TrueImage (Patented)
- Open Front Door Design
- Drag-N-Play
- RoHS Compliance
- Simple and Intuitive Control Panel
- SmartPIN™ AutoFocus (Patented)
- Dust Protection Design (Patented)
- Programmable Origin Modes
- Internal LED Lighting
- Emergency Stop
- Built-in SmartBOX™
- SmartCENTER™ (Patented)
- Smart Vacuum
- Bridge Cutting

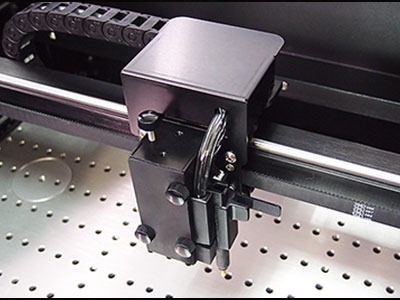

Closed-loop DC Servo Motor and Reliable Motion System
The C180II laser engraver utilizes high performance Closed-loop DC servo motors for precise and fast carriage movement combined with a reliable motion system to produce exceptionally accurate outputs.
TrueImage (Patented)
The patented TrueImage function employs a uniquely designed laser firing algorithm that presents its most vivid form when laser engraving images.

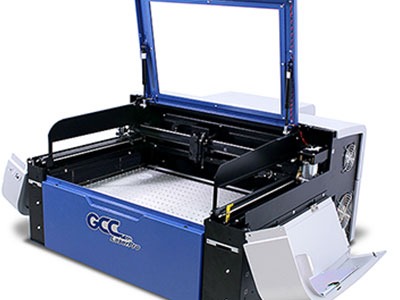

Open Front Door Design
The C180II desktop laser engraver top cover coupled with the front door open design allows easy loading of working pieces.

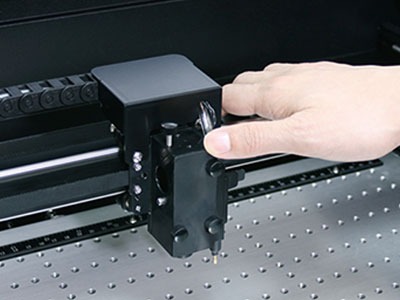

Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.
RoHS Compliance
Dust protection covers around working table to provide marvelous exhaust vacuum together with Smart Vacuum design, and prevention dust accumulated on laser engraving system.
Standard Water Chiller Allows For High Production

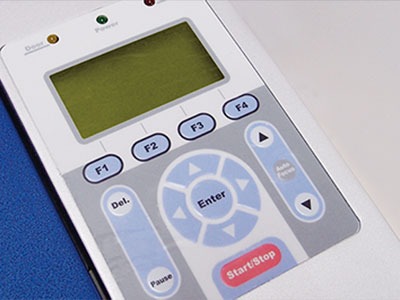

A user-friendly menu-driven interface system simplifies the operation of C180II desktop laser engraver. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.

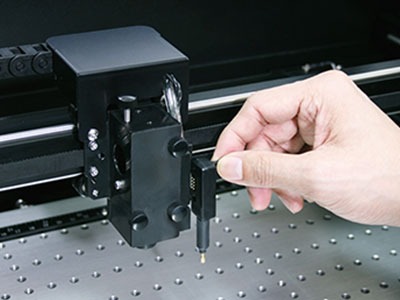

SmartPIN™ AutoFocus (Patented)
The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even when laser engraving on transparent materials

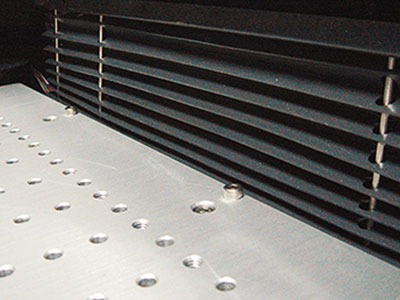

Dust Protection Design (Patented)
Dust protection covers around working table to provide marvelous exhaust vacuum together with Smart Vacuum design, and prevention dust accumulated on laser engraving system.

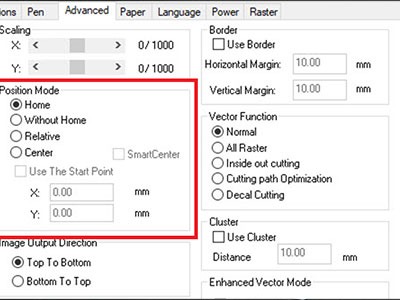

Programmable Origin Modes
Easy to use position modes allow the operator an effortless way to setup a job for laser engraving. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

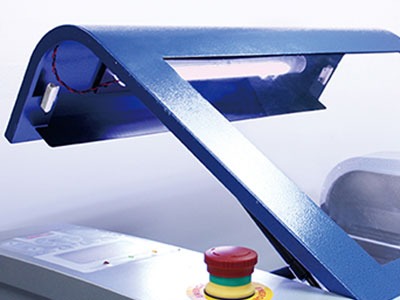

Internal LED Lighting
Internal LED lighting illuminates the working space giving a clear view of the work in progress.

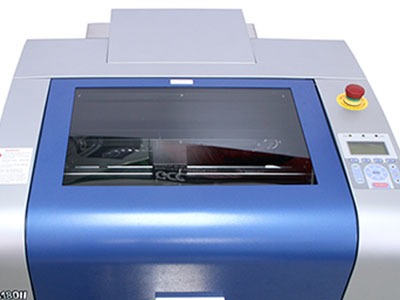

Emergency Stop
Big red button located on the top of the laser engraver allows operators to stop the laser and the motion carriage immediately to provide highly safety operation.

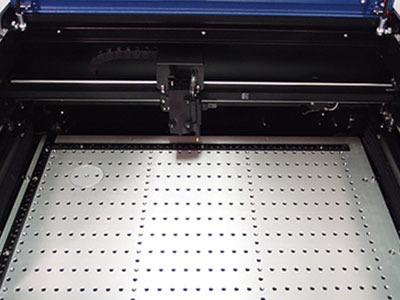

Built-in SmartBOX™
The C180II laser engraver built-in SmartBOX™ produces a downward pulling force to keep light items in place creating a stable working environment.

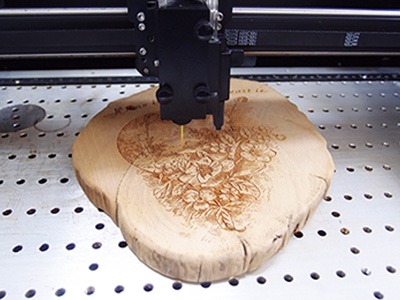

SmartCENTER™ (Patented)
The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.

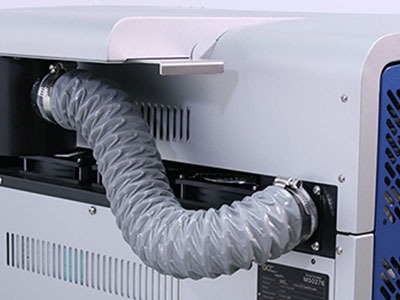

Smart Vacuum
Smart vacuum adjustment is a fantastic design which allows users to choose top or bottom ventilation according to their laser engraving demands.

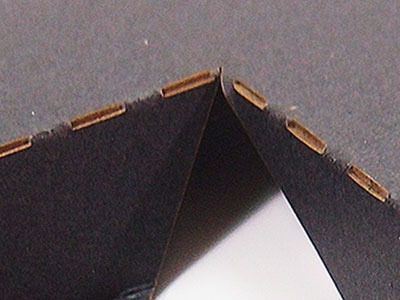

Bridge Cutting
Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfills versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface.
| C180II | ||
| Work Area | 18 x 12 in. (458 x 305 mm) | |
| Max. Part Size (L x W x H) | 19.8 x 12.2 x 6 in. (503 x 310 x 152.4 mm) | |
| Table Size | 20.4 x 14.7 in. (520 x 375 mm) | |
| Dimensions (W x D x H) | 30.7 x 29.1 x 16.1 in. (780 x 740 x 410 mm) | |
| Laser Source | 12 to 40 Watt Sealed CO2 Laser | |
| Cooling | Air-cooled, Operating environment temperature 15°- 30°C (60°- 86°F) | |
| Drive | Closed-loop DC Servo Control | |
| Maximum Motor Speed | 1.01 m/s (40 in/s) | |
| Speed Control | Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job) | |
| Power Control | Adjustable from 0-100% (Up to 16 color-linked power settings per job) | |
| Engraving Capability | 256-level gray scale image processing capability | |
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater | |
| Z-Axis Movement | Automatic | |
| Focus Lens | Standard 2.0", optional 1.5" available | |
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000 | |
| Interface | 10 Base-T Ethernet USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0  – For connecting with the computer | |
| Compatible Operating Systems | MS Windows | |
| Display Panel | 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus | |
| Safety | Class 1 Laser Product Compliant with EN60825, Class 2 Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance | |
| Facility Requirements | ||
| Operation Voltage | 100-240VAC, 50-60Hz Auto Switching, Max. 15A | |
| Fume Extraction System | External exhaust system with minimum flow rate 215m3/h (CFM 125 ft3/min) is required, 10kPA negative pressure (Purex GCC 400 @ 2"& 4" exhaust port) | |
*Speed is not equal throughput.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.

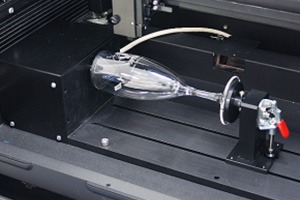

Rotary Attachment - C180II
The rotary attachment provides the LaserPro C180II with the ability to engrave on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary attachment allows for a fourth axis which rotate the object 360° to allow for engraving on cups, wine glasses, and even spherical objects.
The maximum diameter and length of the to-be-engraved object is 120 mm and 250 mm respectively. Its maximum weight should not exceed 3kg.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartGUARD™ Fire Alarm (Patented)
In addition to the standard X, Y, and Z axes, the rotary attachment of E200/E200S Series desktop laser engraver allows for a fourth axis that rotates the object 360° for laser engraving on cups, wine glasses, cylindrical objects, and even spherical objects.
The maximum diameter and length of the to-be-engraved object are 70mm (3 inches) respectively. Its maximum weight should not exceed 3kg (6 lbs).
Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINT™
SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.

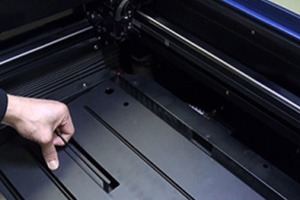

SmartTRAY™
There is no troublesome installation process but extraordinarily optimized ventilation structure and aerodynamic designs. SmatTRAY™ even provides air ventilation all over the working area, directing the dust to the downward ventilation for immediate removal. SmartTRAY™ is the best pal when working with MDF, rubber, wood, paper, and other materials .
