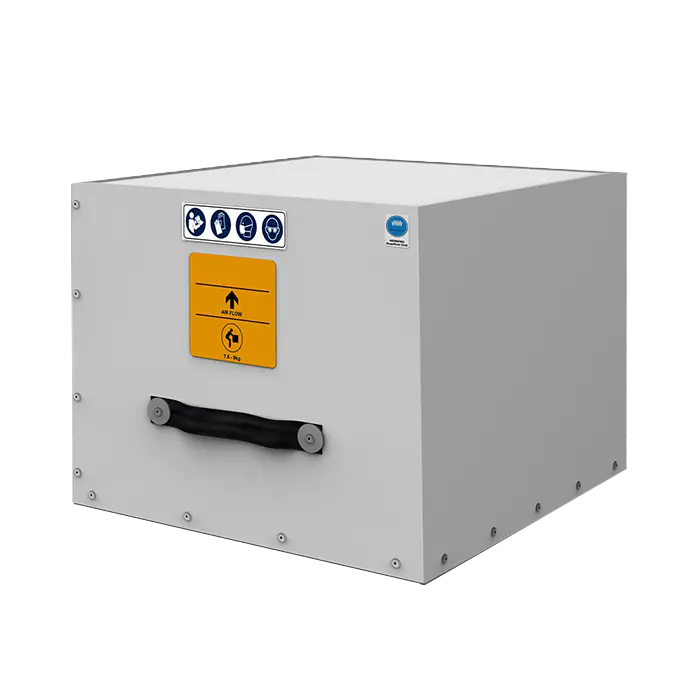

Genuine BOFA DeepPleat DUO pre-filter for AD Oracle laser fume extraction systems, designed to capture larger particulate and help extend the life of the main combined filter.
Dimensions:
310H x 370W x 380D Approx.
Filter Type:
Pre Filter
Filter Media:
Pleated glass fibre material.
Filter Construction:
Zinc plated Steel case, sealed with Polyurethane sealant
Filter Efficiency:
90% for particle sizes down to 0.4μm
Carbon Content:
N/A
Overview
The BOFA AD Oracle Pre Filter (1UA1030156) is a genuine replacement DeepPleat DUO pre-filter designed for BOFA AD Oracle and compatible Oracle-series laser fume extraction systems.
The filter uses pleated glass-fibre media to provide effective pre-filtration of particulate from extracted laser fumes. Its DeepPleat design provides approximately 12 m² of filter media area, helping to maximise filtration capacity and protect the downstream combined HEPA and gas filter.
The filter is housed in a Zintec mild-steel casing, with a polyurethane-sealed zinc-plated steel case and rear rubber-gasket connection. The original BOFA filter specification states an efficiency of 90% for particle sizes down to 0.4 µm.
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas
Key Features
- Genuine BOFA replacement pre-filter
- DeepPleat DUO construction
- Pleated glass-fibre filter media
- Approximately 12 m² filter media area
- 90% efficiency for particles down to 0.4 µm
- Zintec mild-steel filter housing
- Polyurethane-sealed construction
- Rear rubber-gasket connection
- Helps protect the main combined filter and extend filter life
- Suitable for BOFA AD Oracle, AD Oracle iQ, AD Base 1 Oracle and AD Base 2 Oracle systems
| BOFA C180 Bag Filter | Â |
| Dimensions | 310H x 370W x 380D Approx. |
| Brand | BOFA |
| Product Type | Pre Filter |
| Part Number | 1UA1030156 |
| Filter Media | Pleated glass fibre material. |
| Filter Media 2 | N/A |
| Fabrication | Zinc plated Steel case, sealed with Polyurethane sealant |
| Connection | Rubber Gasket at rear of filter |
| Filter Efficiency | 90% for particle sizes down to 0.4μm |
| Carbon Weight | N/A |
