40W Water Cooled CO2 Glass laser tube.

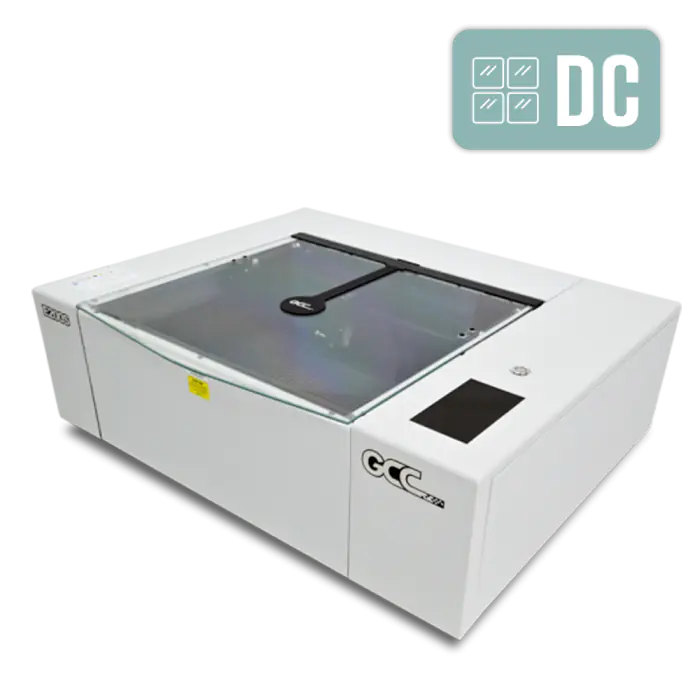

E200SL CO2 desktop laser engraver provides an easy operating workflow and is able to complete different processing procedures quickly, containing various advanced functions with stable quality and excellent safety features.
Wattage:
40W
Tube:
Glass Tube
Work Area:
510 x 330 mm
Z-Axis:
76 mm w/o cutting table
Work Speed (max):
0.51 m/s
Cooling:
Water Cooled
Overview
E200S Series is GCC latest LaserPro professional-grade co2 desktop laser engraving machine, containing advanced functions with user-friendly design and excellent artwork presented.
Key Features
- Multifunction User Interface
- High Throughput for Unlimited Imagination
- Unmatchable Output Quality
- SmartEYES™
- 7” Large Touch Panel
- Standard Water Chiller Allows For High Production
- Stamp Mode With Shoulder Level Function
Multifunction User Interface
Multifunction user interface for both beginners and advance users.
*SmartJob only for E200S
High Throughput for Unlimited Imagination
20ips Processing speed with DC servo motor to boost productivity while maintaining precision.
Unmatchable Output Quality
E200S Series desktop laser engraver takes your engraving and cutting to a level beyond other desktop lasers.
SmartEYES™
SmartEYES™ camera allows you to preview your design to make positioning simple and easy.
*SmartEYES only for E200S
7” Large Touch Panel
With colorful intuitive 7” touchscreen interface, E200S Series desktop laser engraver can bring your inspiration to life.
Standard Water Chiller Allows For High Production
E200S Series desktop laser engraver comes with a standard water chiller to ensure machine efficiency.
*Water chiller only for E200S/E200SL
Stamp Mode With Shoulder Level Function
E200S Series desktop laser engraver stamp mode with shoulder level function enables you to produce a professional stamp easily.
| E200S & E200SL | ||
| Work Area | 510 x 330 mm (20 x 12.9 in.) | |
| Max. Part Size (W x L x H) | 520 x 340 x 20 mm (20.4 x 13.4 x 0.78 in.) (with grid cutting table) | |
| Working table | Standard grid cutting table | |
| Laser Wattage | 40W Glass tube | |
| Dimensions (W x D x H) | 915 x 780 x 300 mm (36 x 30.7 x 11.8 in. ) | |
| Laser Source | Sealed CO₂ laser | |
| Drive | Closed-loop DC servo control | |
| Maximum Working Speed | 0.51 m/s (20 in/s) | |
| Maximum Cutting Thickness | 10mm | |
| Speed Control | Adjustable from 0.1~100% (Up to 5 color-linked speed settings per job) | |
| Power Control | Adjustable from 0~100% (Up to 5 color-linked power settings per job) | |
| CCD Camera | E200S | Standard, accurate within 4mm (0.16 in.)N/A |
| E200SL | N/A | |
| Focus Lens | Standard 1.5” | |
| Resolution (DPI) | Available 250,380,500,760,1000 | |
| Cooling | Water Cooled | |
| Computer Interface | Full-speed USB 2.0 port, 10 Base-T Ethernet | |
| Compatible Operating Systems | E200S | MS Windows (SmartJOB/Printer driver), Mac OS (SmartJOB) |
| E200SL | MS Windows (Printer driver) | |
| Control Panel | 7”touch screen | |
| Connection | Ethernet, USB | |
| Air Compressor | Built-in, available for external high performance air compressor (option) | |
| Blue Laser | 10W 450 nm (option) | |
| Safety | Class 1 Laser Product Complies with EN60825-1 Class 2 Laser Product Complies with CDRH Class 4 Laser Product Complies with Blue Laser (option) | |
| Facility Requirements | ||
| Electrical | 100-240VAC, 50-60Hz Auto Switching, Max. 15A | |
| Air Exhaust System\ | External exhaust system with minimum flow rate 300 m3/h (10594 ft3/min) is required, 2,500PA negative pressure (Pure-Air PA-300 @ 4" exhaust port) | |
*Speed is not equal throughput.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
Blue Laser
The E200S Series is compatible with an optional blue laser. This versatile laser can mark on various materials, including metal, plastic, and laser hot foil for laser bonding. With blue laser as an optional item, it can engrave metal without any spray on it, blue laser enhances the range of laserable materials.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration
Rotary Attachment - E200/E200S
In addition to the standard X, Y, and Z axes, the rotary attachment of E200/E200S Series desktop laser engraver allows for a fourth axis that rotates the object 360° for laser engraving on cups, wine glasses, cylindrical objects, and even spherical objects.
The maximum diameter and length of the to-be-engraved object are 70mm (3 inches) respectively. Its maximum weight should not exceed 3kg (6 lbs).
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
