ASC-350 series is designed to handle a wide range of production needs, from labels and stickers to customized cards and packaging mockups.
Dimensions:
890 x 570 x 560 mm (package size)
Max Cut Width:
350 mm
Max Cut Force:
600 g
Max Cut Speed:
1500g
Acceptable Material Thickness:
0.8 mm (600 - 700gsm)
Overview
The ASC-350 series delivers high-speed and stable performance through its advanced servo motor system, while ensuring precise output through accurate registration mark detection via a built-in camera and contour cutting system.
ASC-350 series is designed to handle a wide range of production needs, from labels and stickers to customized cards and packaging mockups.
Key Features
- Versatile Cutting Aplication
- Barcode Recognition & Direction Correction
- High-Volume Sheet Capacity
- Maximize Material Usage
- Professional Creasing
- 4” Touch Panel

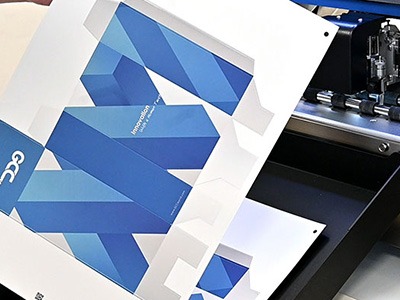

Versatile Cutting Aplication
Supports die cutting, kiss cutting, and perforation to meet various application needs.

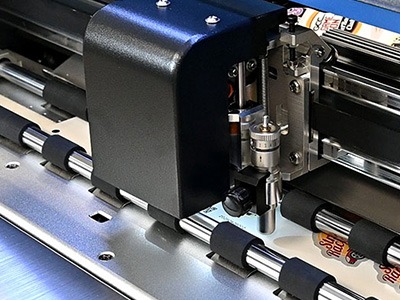

Barcode Recognition & Direction Correction
Built-in camera for contour cutting and registration alignment.

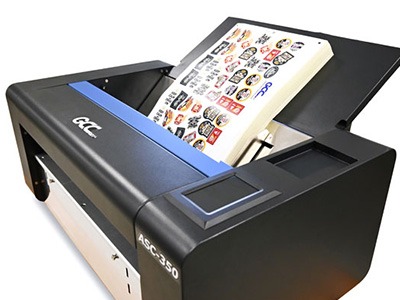

High-Volume Sheet Capacity
Media capacity up to 40 mm in total thickness, approximately 150 sheets.

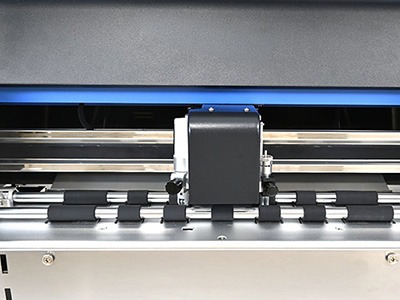

Maximize Material Usage
Dual-row pinch rollers provide stable feeding and improve media edge utilization.

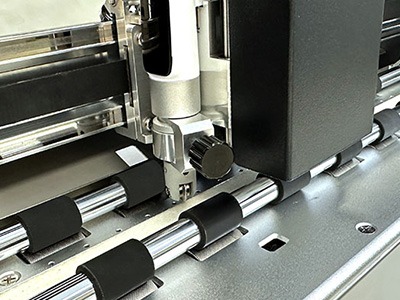

Professional Creasing
Rotary wheel creasing for precise fold lines. Available on ASC-350D only

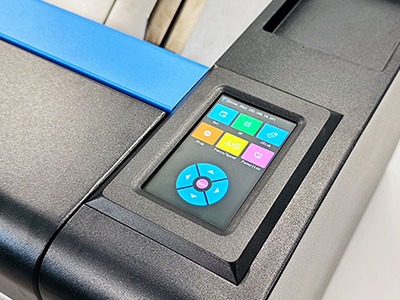

4” Touch Panel
The 4-inch touch screen provides an intuitive and user-friendly interface
| Model | ASC-350 | ASC-350D |
| Key Features | ．High-Speed Cutting ．Perforation Cutting | ．Rotary Wheel Creasing. ．Box Sample Making ．Supports Full Cut and Half Cut |
| Max. Media Width | 370 mm | |
| Max. Cutting Width | 350 mm | |
| Max. Media Thickness | 0.8 mm (600 ~ 700 gsm) | |
| Max. Media Length | 600 mm | |
| Auto Contour Cut | Camera (Automatically Contour Cutting) | |
| Control | Touchscreen | |
| Motor | Servo motor | |
| Max. Force | 1500 g | L: 3000 g / R: 1500 g |
| Number of heads | 1 | 2 |
| Cutting Precision | ±0.01 mm | |
| Repeat Precision | 0.082 mm | |
| Max. Empty Running Speed | 1600 mm/S | |
| Max. Cutting Speed | 1600 mm/S | |
| Packing Size | 890 x 570 x 560 mm | 940 x 610 x 580 mm |
| Gross weight | 49.5 KG | 56.5 KG |
| Connector Interface | USB A (flash disk) / WiFi (option) / USB B (connection) / Ethernet | |
| Working Environment | +5 °C -+35 °C | |
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC reserves the right to change the specifications at any time without notice.
- The above listed specification values are effective only when operated with media certified by GCC.
